SciSys Sensor Chess Version A (1981)
SCISYS SENSOR CHESS Electronic Chess Computer.

SCISYS SENSOR CHESS Electronic Chess Computer.

Picture taken from SciSys Sensor Chess box.

SCISYS SENSOR CHESS -- Advanced sensory chess computer with its interchangeable modules. SENSOR CHESS -- the chess computer that is never out of date.

    • 8 playing levels.
    • INTEGRAL sensory board.
    • Exchangeable modules.
    • Solves mate-in-4 problems.
    • Recognizes castling, en-passant captures and pawn promotion.
    • Interrupts the immediate reply
    • Knows rules for draw by:
      • Stalemate
      • Threefold repetition.
    • Plays black or white.
    • Setting up AND removing individual pieces.
    • Setting up game and problem positions.
    • Plays against itself.
    • Special key for programming opening variations.
    • Monitors human games between two humans.
    • Generates random openings.
    • Battery or adapter operated.
    • Elegant modern design.

Each new SENSOR CHESS comes with the basic program built-in and a dummy where the module plugs in. Always replace the dummy module whenever you want to play the basic program only.

OTHER MODULES

There are a number of interesting and instructive modules available for SENSOR CHESS. These are the work of International Master and former World Champion Julio Kaplan, who also developed the SENSOR CHESS itself.

Each module not only increases its playing strength but also changes its playing style so that you can as it were play against different personalities.

Excerpts taken from “SciSys Sensor Chess” Box and User Manual.

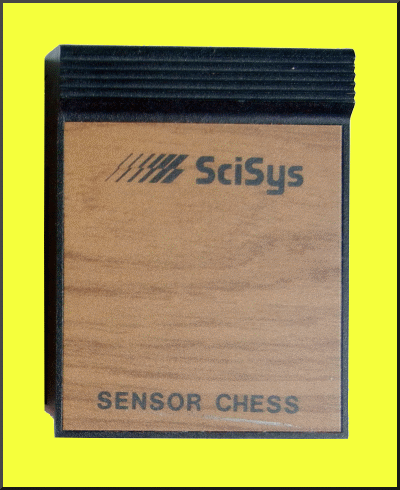

SCISYS SENSOR CHESS DUMMY MODULE

SCISYS SENSOR CHESS DUMMY MODULE

Each Sensor Chess comes with a Dummy Module. Basic program is built into the computer.

Information

SciSys Sensor Chess Version A (1981)

SciSys Sensor Chess Version A (1981)

Box (front)

SciSys Sensor Chess Version A (1981) Box

Model: 221

SciSys Sensor Chess Version A (1981) Model: 221

User Manual

SciSys Sensor Chess Version A (1981) User Manual

Modular Game Cartridge System!

Technical Specifications

Manufacturer

Programmer

SciSys-W Ltd

Julio Kaplan

Year:

1981

Manufacturer ELO

N/A

Original Price

$295.00

Wiki ELO:

1400

Model #:

221

My Serial #:

YII13991

Processor Type

Speed

ROM

RAM

6502A

8 Bit Single Chip

2 Mhz

4 KB

256 Byte

Battery Operated:

N/A

Adapter Option:

9V DC 800 mA +/-

Display Type:

64 Board LED’s 12 Control LED’s

Board Type:

Sensory Electronic

Board Size:

8” x 8”

Overall Size:

12.3/4” x 9.1/2” x 1.1/4”

Move Entry

Options Selection

Playing Levels

Opening Library

Take Back Moves

Touch Sensory Board

Push Button Controls

8

Limited

6 Half Moves

Position Setup/Ver.

Display Move Info/Analysis

Solve Mate

Save Game/ Ponder

Hint/Teach Mode

Yes / Yes

Yes / Yes

Mate in 4

Yes / Yes

Yes / No

Active Level:

3

Tournament Level:

5

Infinite Level:

8

Game Information

Schachcomputer.Info

The Spacious Mind

Active Games (30s:1 or 60/30 etc.)

Active Games (30s:1 or 60/30 etc.)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

21

8

1

12

40.5

1565

n/a

n/a

n/a

n/a

n/a

n/a

Tournament Games (180s:1 or 40/2 hrs)

Tournament Games (180s:1 or 40/2 hrs)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a
