Chafitz Steinitz Edition-4 Game Module (1983)

Steinitz Edition-4 Game Module was launched towards the end of 1982 / beginning of 1983 to replace the Morphy Edition Game Module. It was the last game module launched by Chafitz Inc/Applied Concepts Inc. At around the same time the Capablanca Openings Module was also launched which was written by Larry Atkin.

Steinitz Edition-4 Game Module ran at 4 MHz whereas the predecessor modules launched by Chafitz Inc/Applied Concepts Inc,, all had 2 MHz speed. Additional improvements were made with the display, you could now see the depth of search, best variation and position evaluation.

The Steinitz Edition-4 Game Module was also intended for use with the forthcoming Destiny MEGA-4 GGM which should have been launched towards the end of 1983.

Information

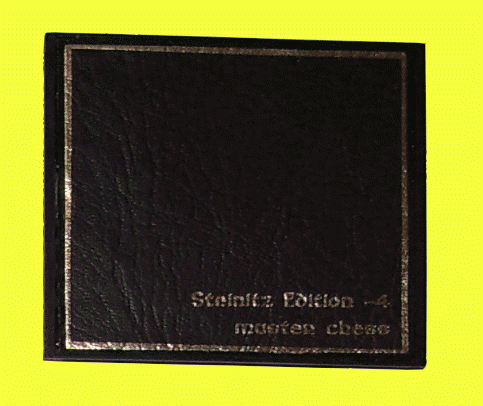

Chafitz Steinitz Edition-4 (1983) Front View

Chafitz Steinitz Edition-4 (1983) Front View

Back View

Chafitz Steinitz Edition-4 (1983) Back View

Destiny MEGA-4 GGM

Chafitz Steinitz Edition-4 (1983) can be used with Destiny MEGA-4 GGM

User Manual

Chafitz Steinitz Edition-4 (1983) User Manual

Steinitz Module can be used with MGS or GGM

Technical Specifications

Manufacturer

Programmer

Chafitz Inc. / Applied Concepts Inc

Larry Atkin

Year:

1983

Manufacturer ELO

?

Original Price

$300

Wiki ELO:

1582 Colditz Test

Model #:

?

My Serial #:

074830

Processor Type

Speed

ROM

RAM

6502

8 Bit

4 Mhz

24 Kb

8 Kb

Battery Operated:

N/A

Adapter Option:

N/A

Display Type:

uses MGS or GGM

Board Type:

uses MGS or GGM

Board Size:

N/A

Overall Size:

4.3/8” x 3.5/8” x 1.5/8”

Move Entry

Options Selection

Playing Levels

Opening Library

Take Back Moves

via MGS or GGM

via MGS or GGM

11

3500+ Half Moves (Ply)

32 Ply

Position Setup/Ver.

Display Move Info/Analysis

Solve Mate

Save Game / Ponder

Hint/ Teach Mode

Yes / Yes

Yes / Yes

Mate in 11

Yes / Yes

Yes / No

Active Level:

Use Time Parameter

Tournament Level:

Level 8

Infinite Level:

Level 9

Game Information

Schachcomputer.Info

The Spacious Mind

Active Games (30s:1 or 60/30 etc.)

Active Games (30s:1 or 60/30 etc.)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

Tournament Games (180s:1 or 40/2 hrs)

Tournament Games (180s:1 or 40/2 hrs)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

n/a

Chafitz Moprhy Module is compatible with:

1979

1981

1984

Modular Game System

Great Game Machine

Destiny MEGA-4 GGM

Chafitz Modular Game System (1979)

Chafitz Great Game Machine (1981)

Chafitz Destiny MEGA-4 GGM (1984)

Table Top

Table Top

Table Top

Optional Add-ons for Morphy Module

1981

1981

 Gruenfeld Module

Capablanca Module

Chafitz Openings Module Gruenfeld (1981)

Chafitz Endgame Module Capablanca (1981)

Openings Module

Endgame Module
